GENTILIN AIR

Technical Data· Voltage (V): 230,00· Frequency (Hz): 50,00· Nominal rating (kW): 0,75· Nominal rating (HP): 1,00· Rotation speed (rpm): 1.400,00· Absorption (A): 3,00· Number of cylinders: 2· Air intake (L/min): 150,00· Air Delivery (L/min @5 bar): 75,0..

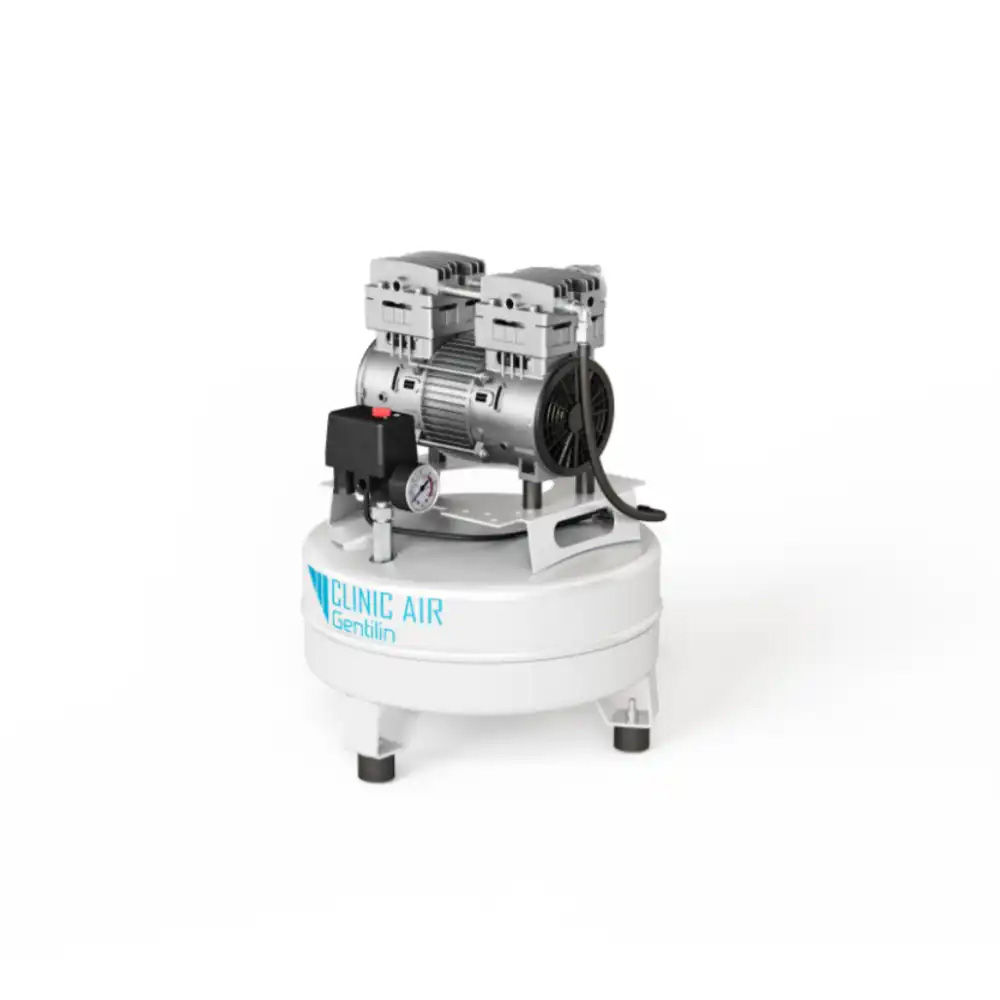

Standart Version(Smart 1.25)Technical Data • Air purity class (ISO 8573-1): X-X-0• Voltage (V): 230,00• Frequency (Hz): 50,00• Nominal rating (kW): 0,75• Nominal rating (HP): 1,00• Rotation speed (rpm): 1.400,00• Absorption (A): 3,00• Number of cylinders: 2• Air intake (L/min): 150,00• Air Deli..

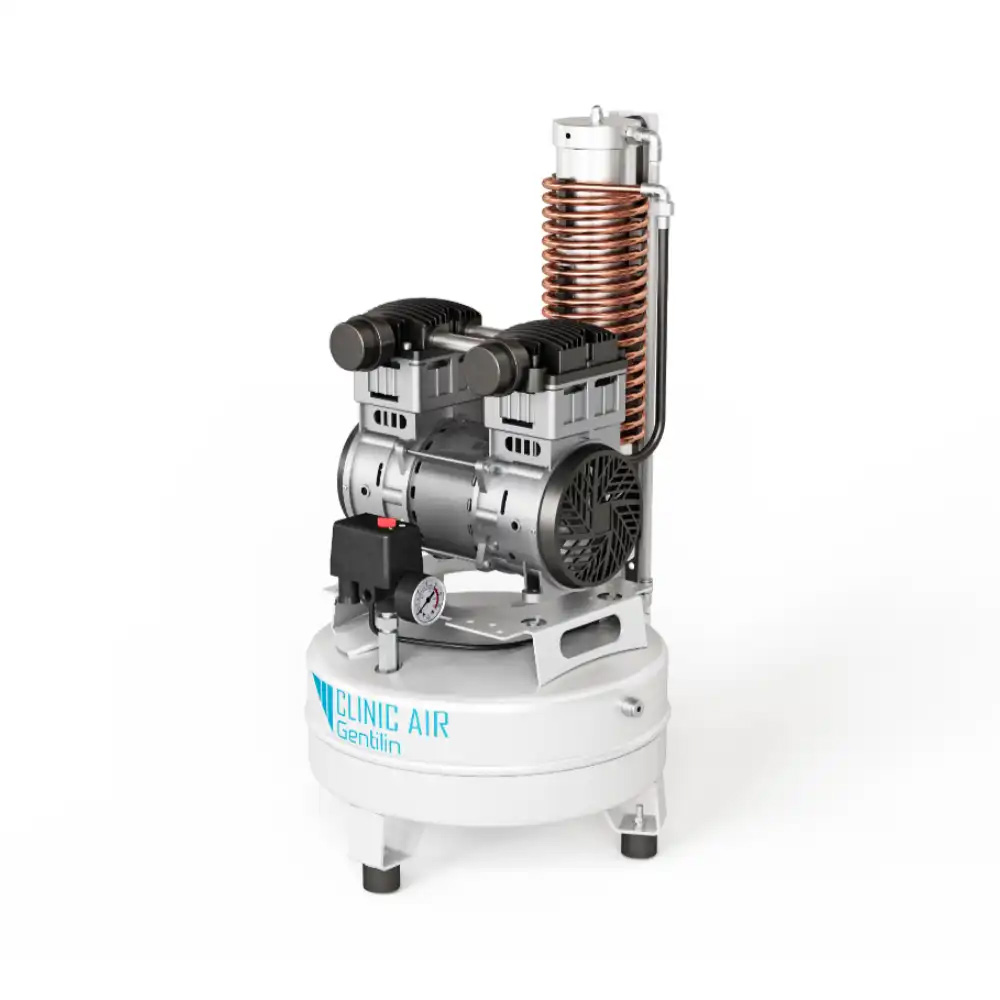

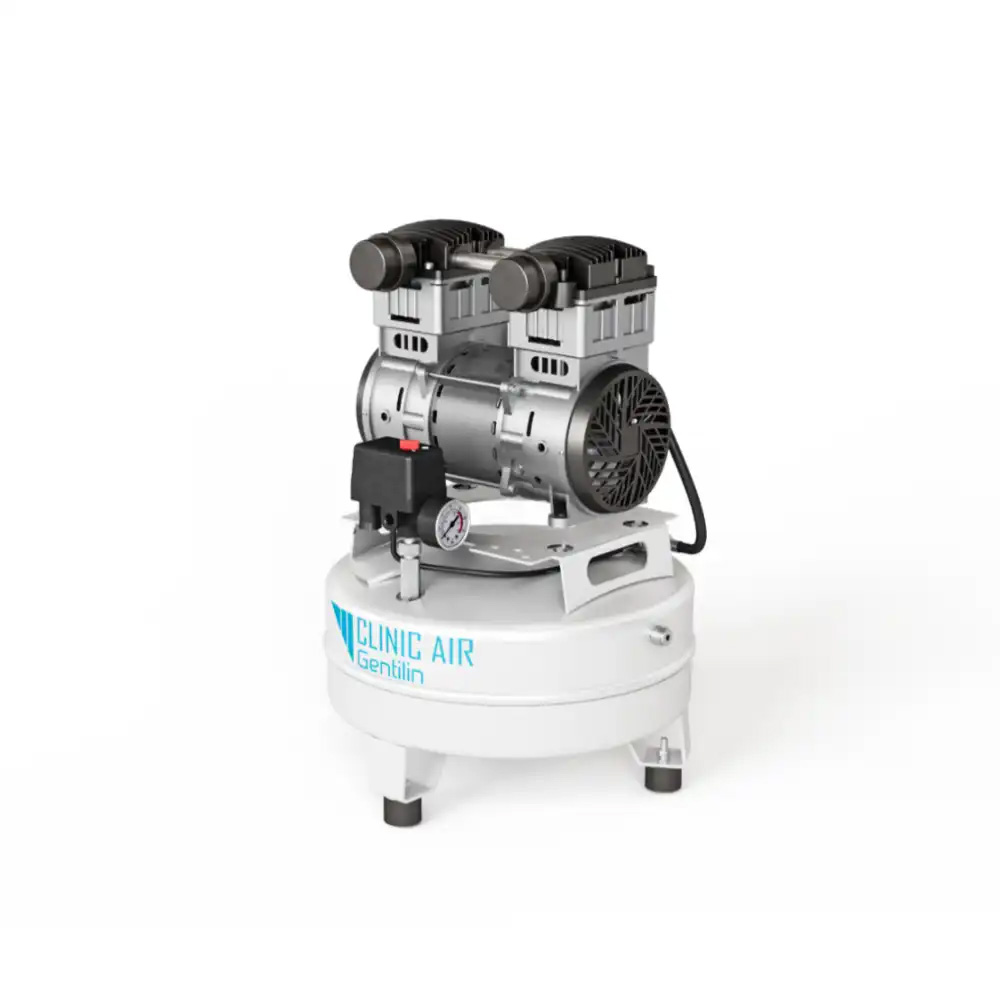

STANDART VERSION (SMART 2.25) Technical Data• Condensate Treatment: -• Particulate Treatment: -• Air purity class (ISO 8573-1): X-X-0• Voltage (V): 230,00• Frequency (Hz): 50,00• Nominal rating (kW): 1,50• Nominal rating (HP): 2,00• Rotation speed (rpm): ..

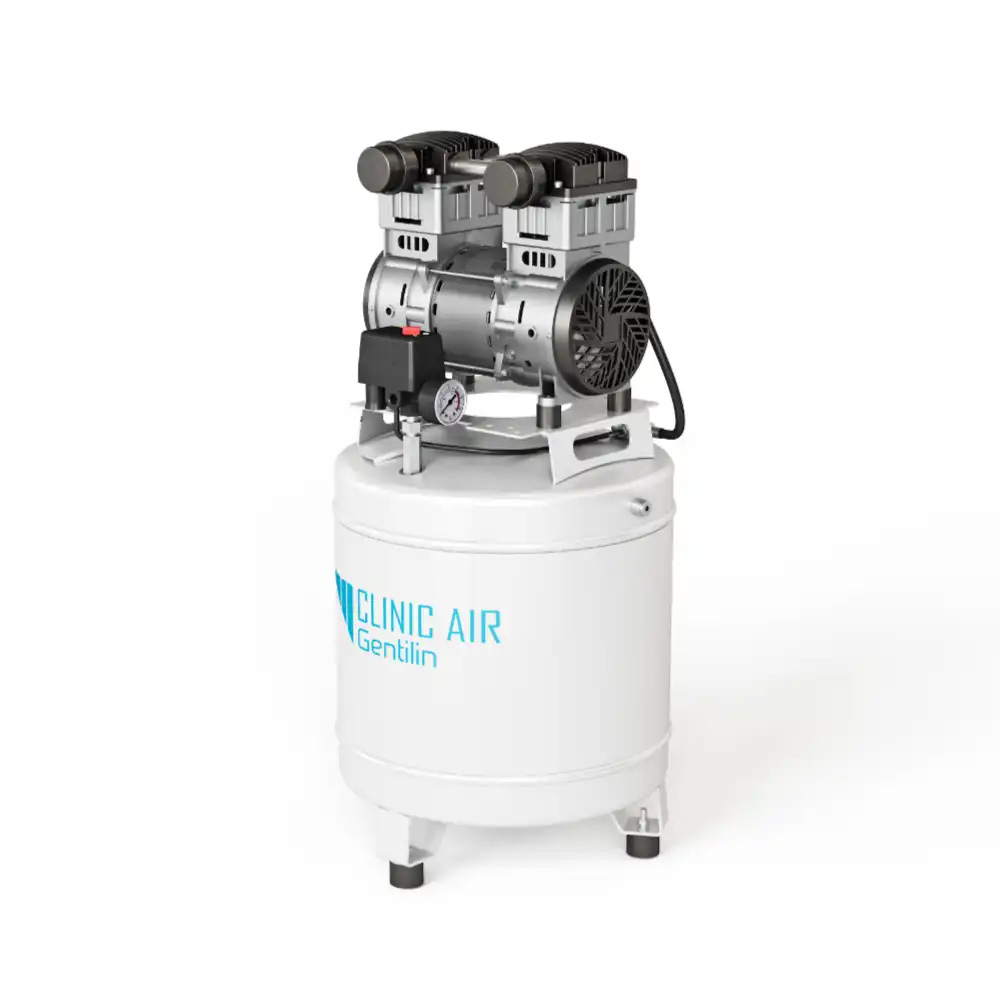

STANDART VERSION (SMART 2.50) Technical Data• Condensate Treatment: -• Particulate Treatment: -• Air purity class (ISO 8573-1): X-X-0• Voltage (V): 230,00• Frequency (Hz): 50,00• Nominal rating (kW): 1,50• Nominal rating (HP): 2,00• Rotation speed (rpm): 1.400,00• Absorption (A): 6,40• Number o..

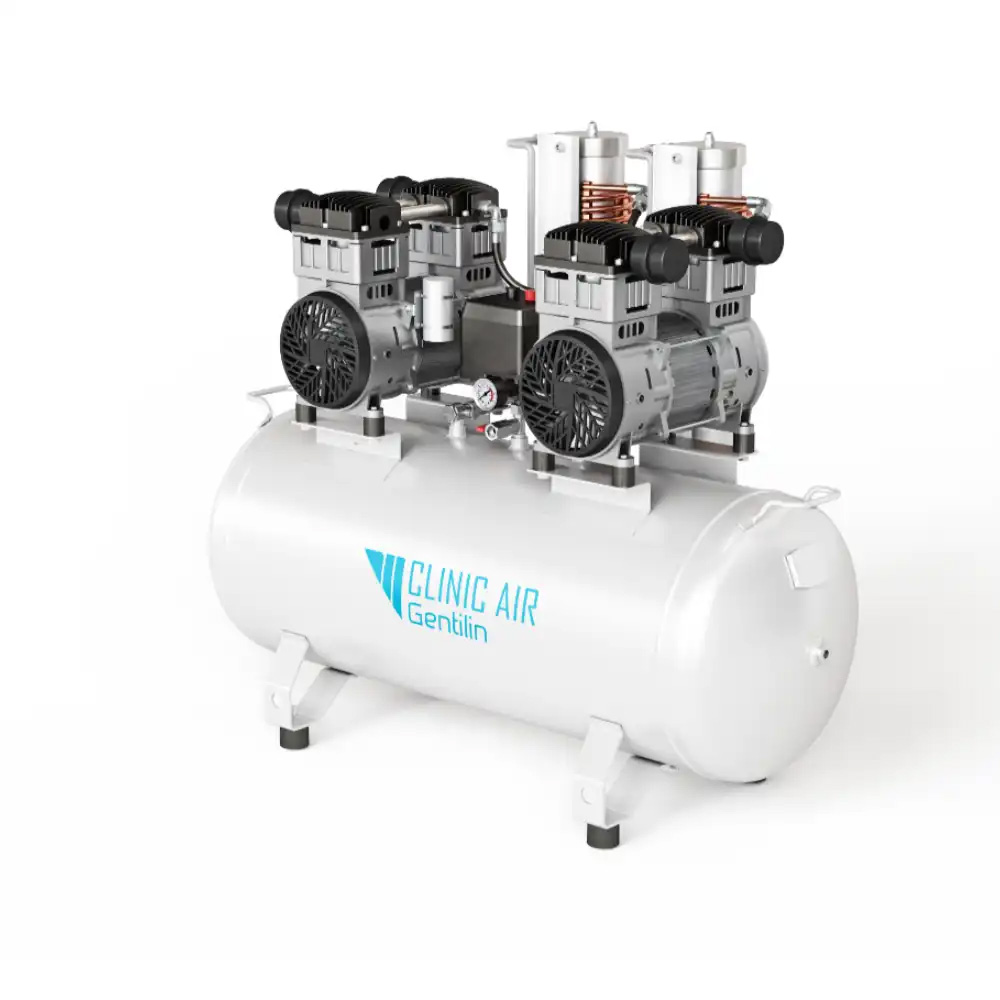

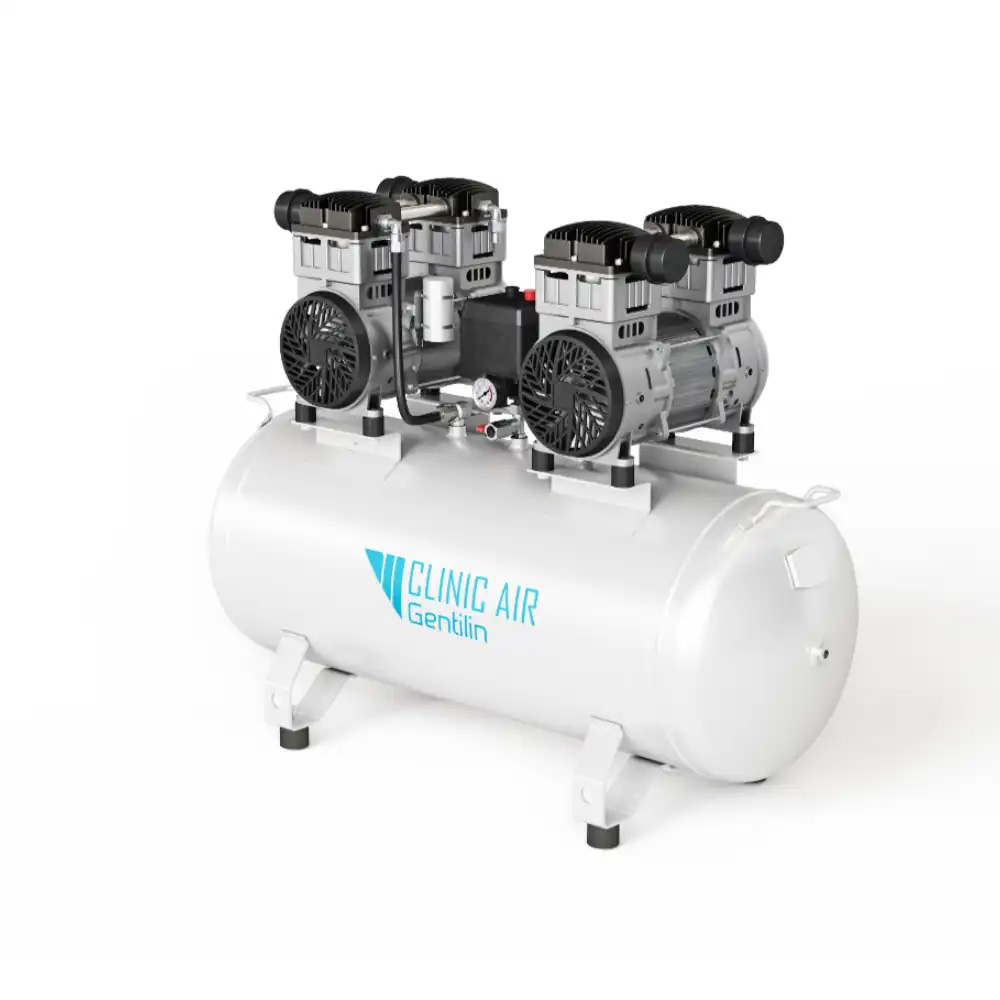

STANDART VERSION( SMART 4.90)Technical Data• Condensate Treatment: -• Particulate Treatment: -• Air purity class (ISO 8573-1);  X-X-0• Voltage (V): 230,00• Frequency (Hz): 50,00• Nominal rating (kW):  3,00• Nominal rating (HP): 4,00• Rotation speed (rpm): 1.400,00• Absorption (A): 6,00• Nu..

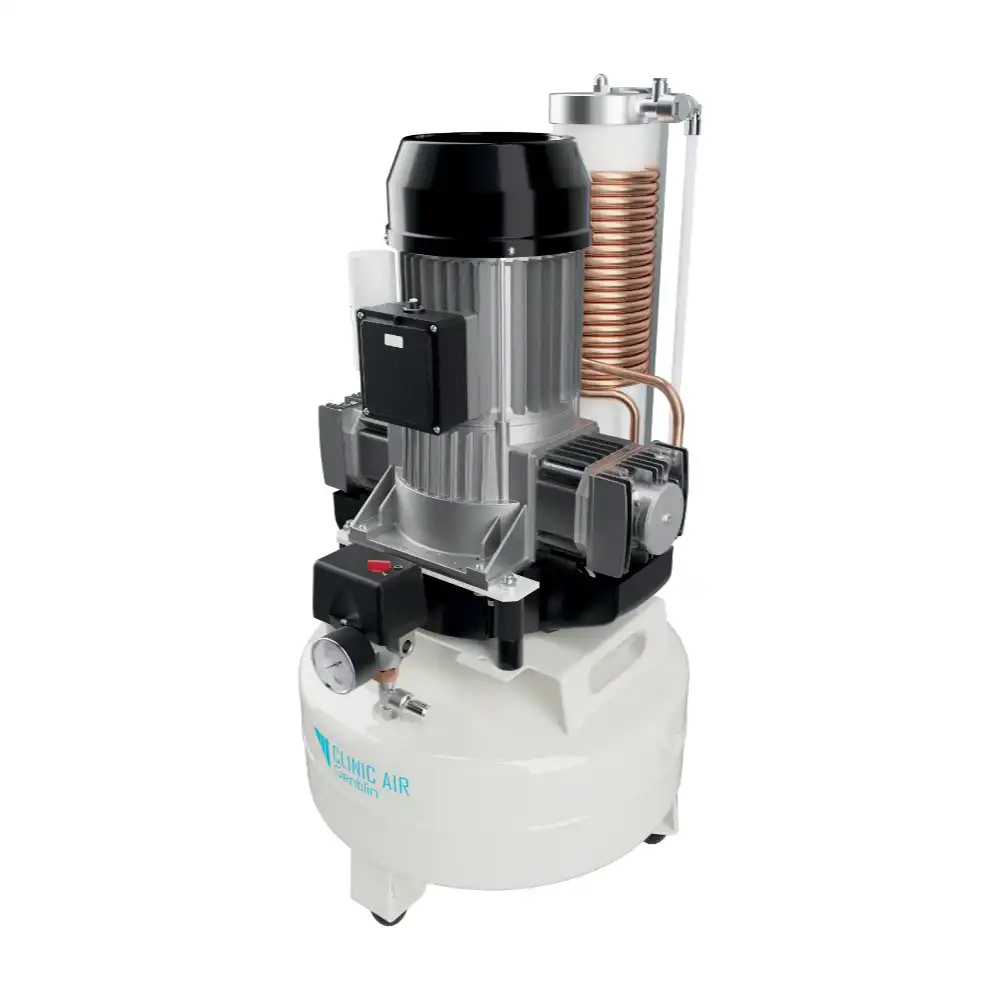

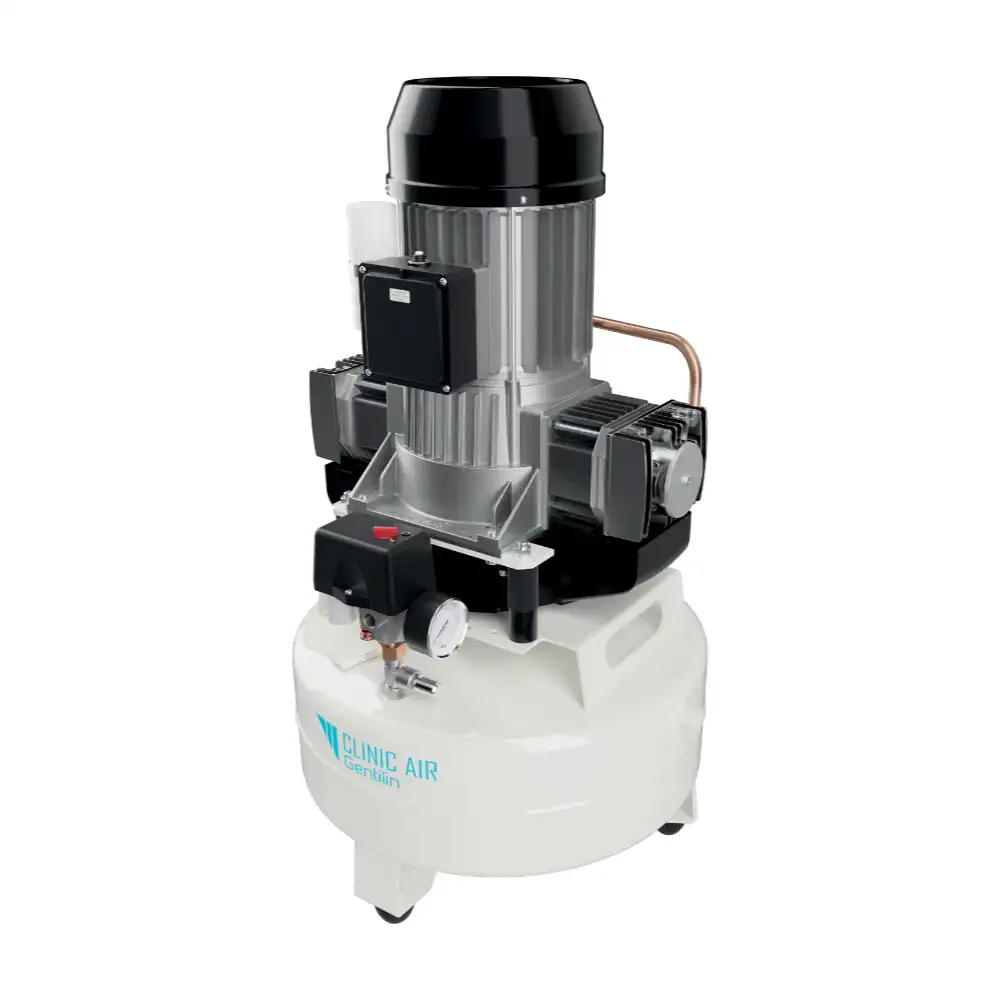

STANDART VERSION( SMART 3.25-S)Technical Data• Condensate Treatment: -• Particulate Treatment: -• Air purity class (ISO 8573-1): X-X-0• Voltage (V): 230,00• Frequency (Hz): 50,00• Nominal rating (kW): 1,80• Nominal rating (HP): 2,20• Rotation speed (rpm): 1.40..

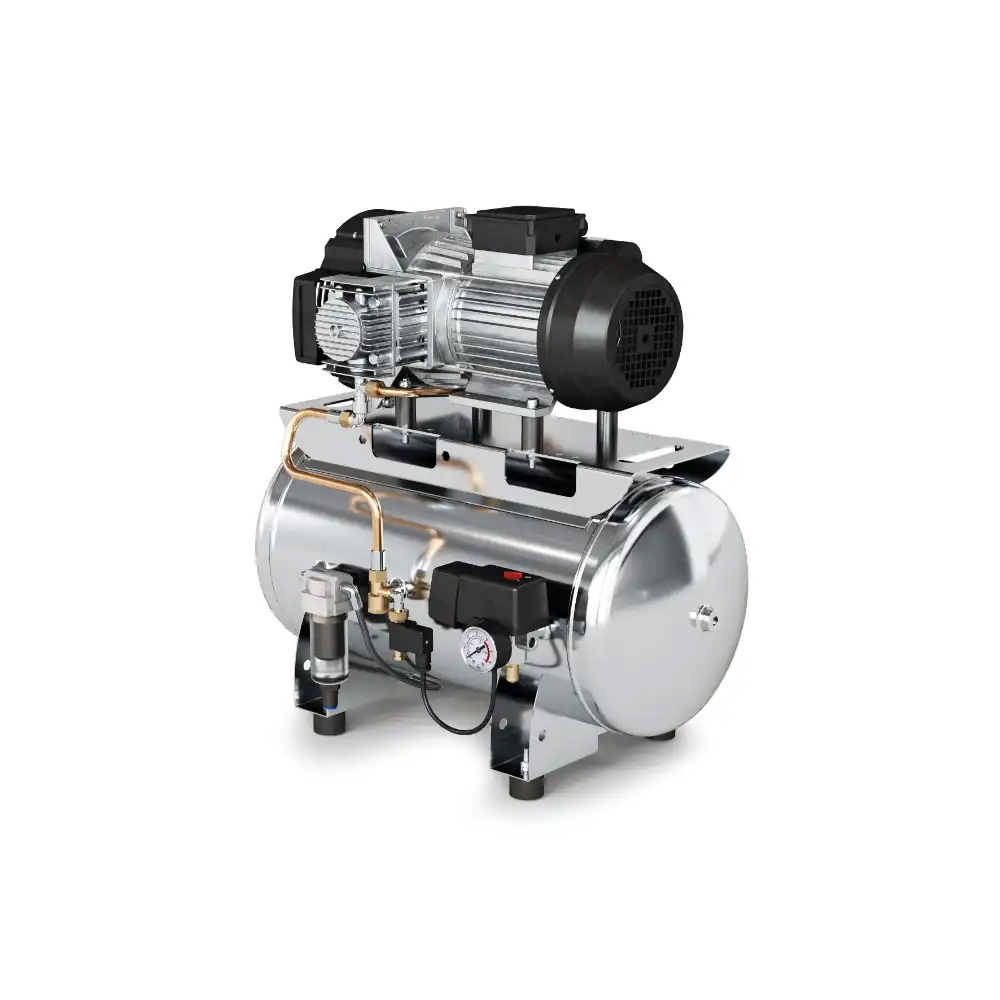

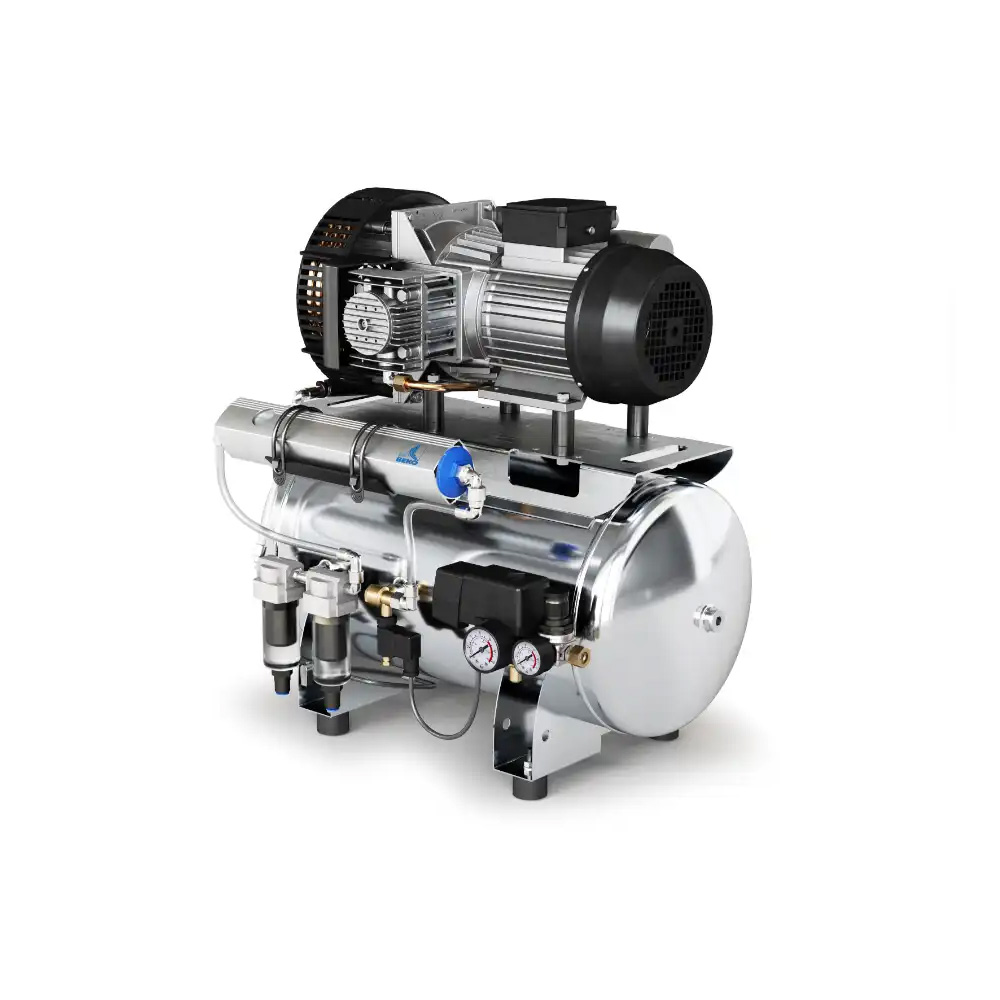

STANDART VERSION (CLINIC 3/40)Technical Data· Condensate Treatment: -· Particulate Treatment: -· Air purity class (ISO 8573-1): X-X-0· Voltage (V): 230,00· Frequency (Hz): 50,00· Nominal rating (kW): 1,80· Nominal rating (HP): 2,50· Rotation speed (rpm): 1.400..

STANDART VERSION 230V / 400V  ( CLINIC 6/90 )Technical Data•  Condensate Treatment: -• Particulate Treatment: -• Air purity class (ISO 8573-1): X-X-0• Voltage (V): 230,00 / 400,00 • Frequency (Hz): 50,00• Nominal rating (kW): 2,80 / 3,00• Nominal rating (..

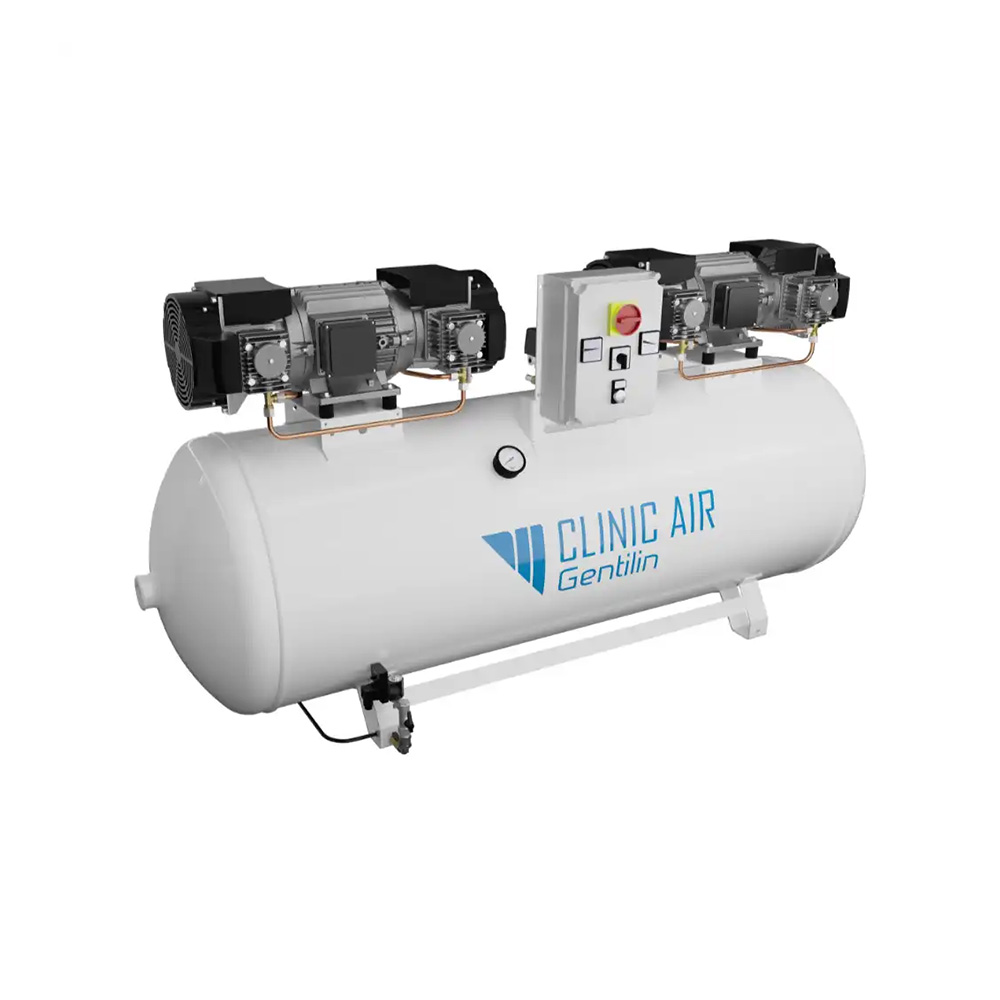

STANDART VERSION ( CLINIC 12.500) Technical Data• Condensate Treatment: -• Particulate Treatment: -• Air purity class (ISO 8573-1): X-X-0• Voltage (V): 400,00• Frequency (Hz): 50,00• Nominal rating (kW): 6,00• Nominal rating (HP): 8,00• Rotation speed (rp..

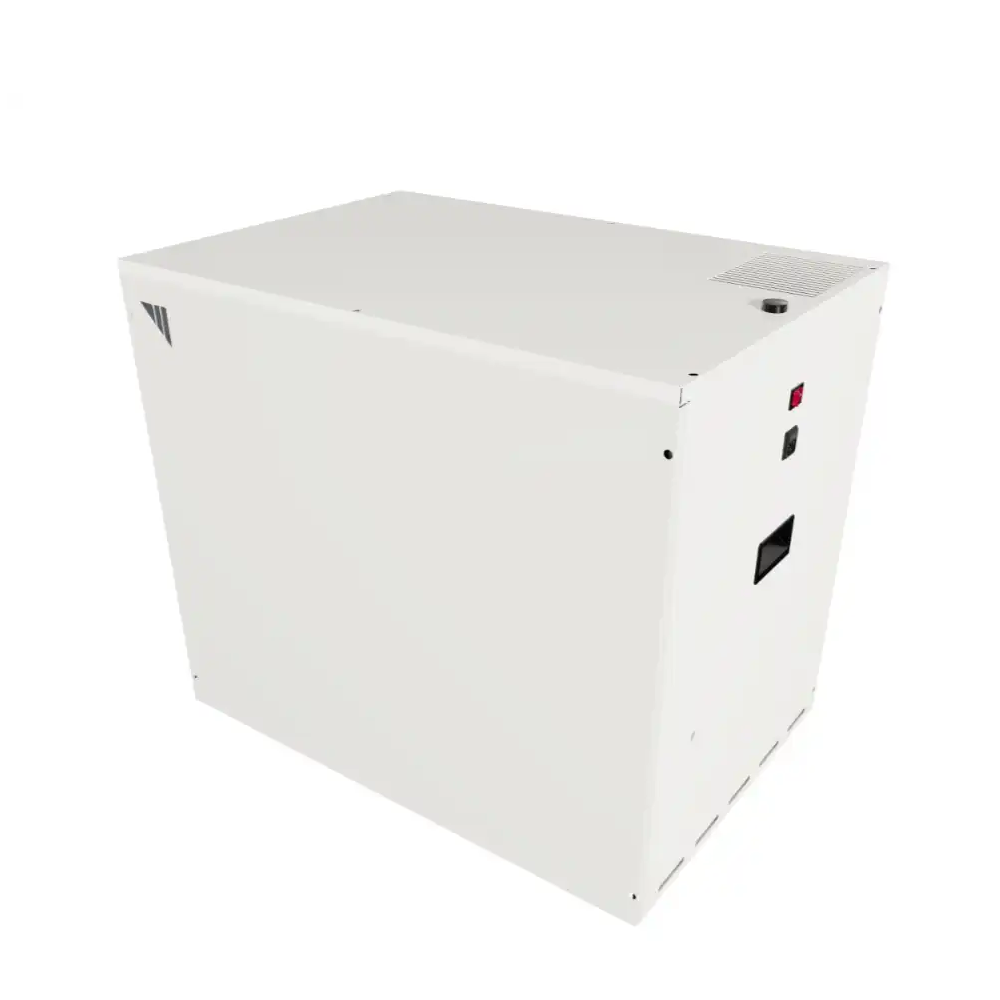

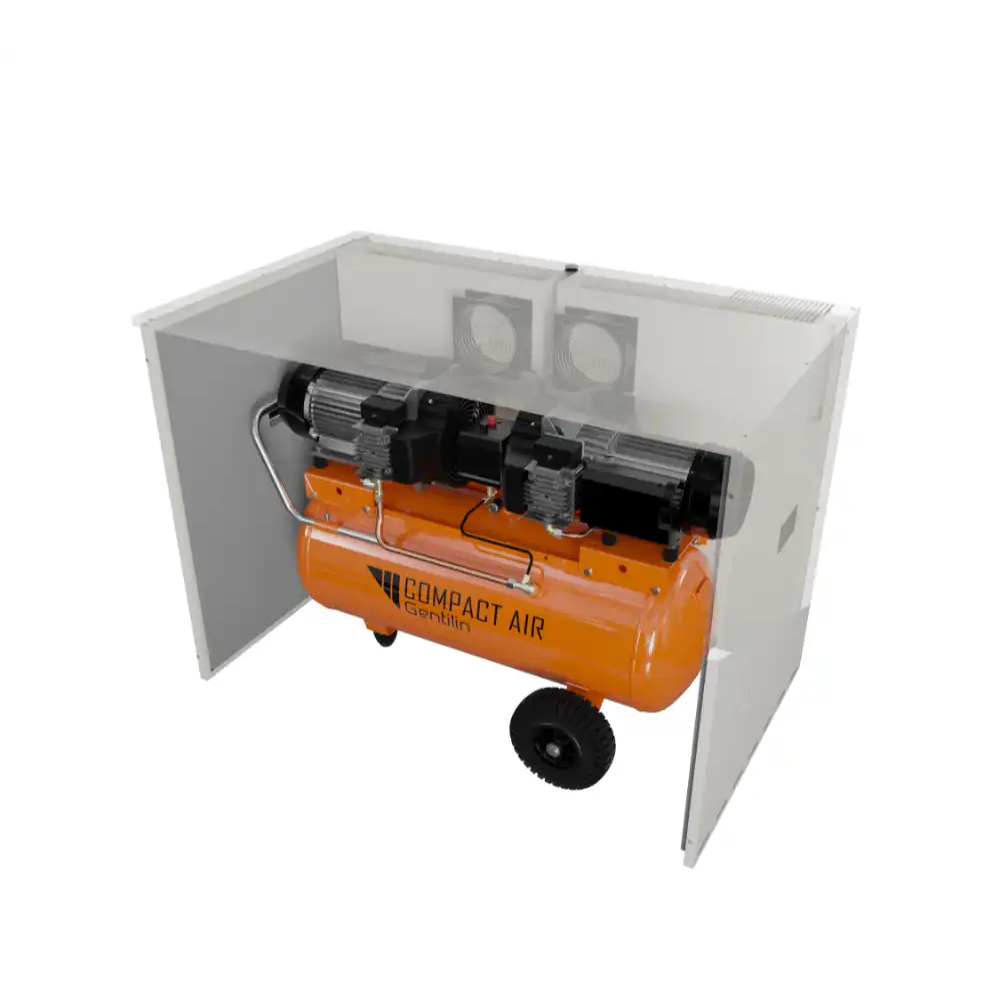

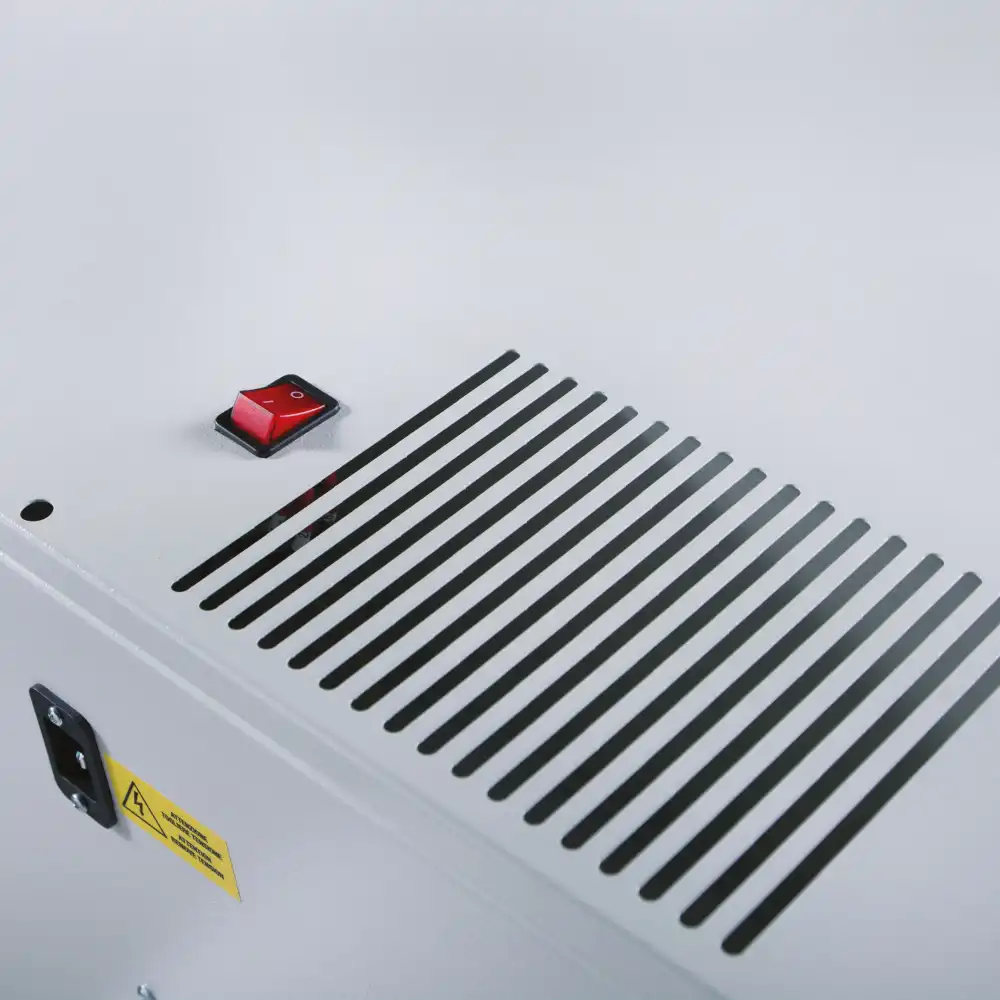

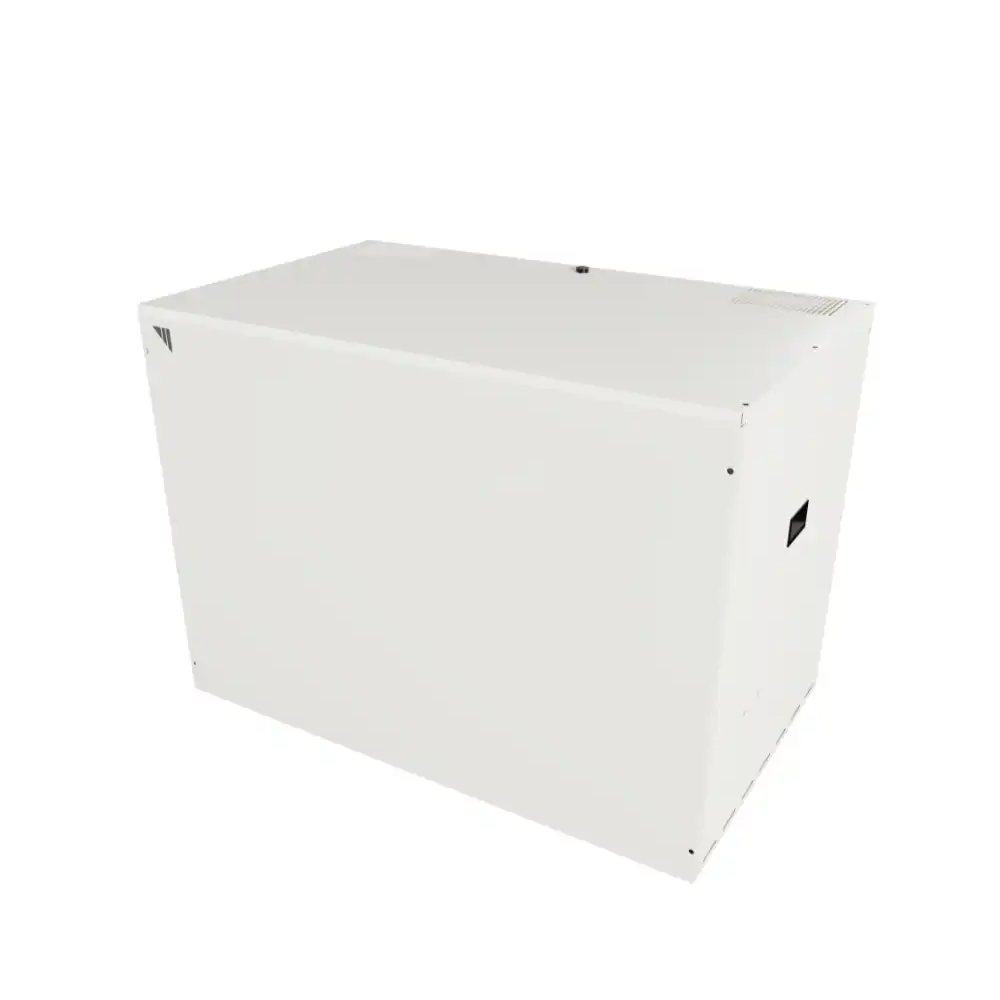

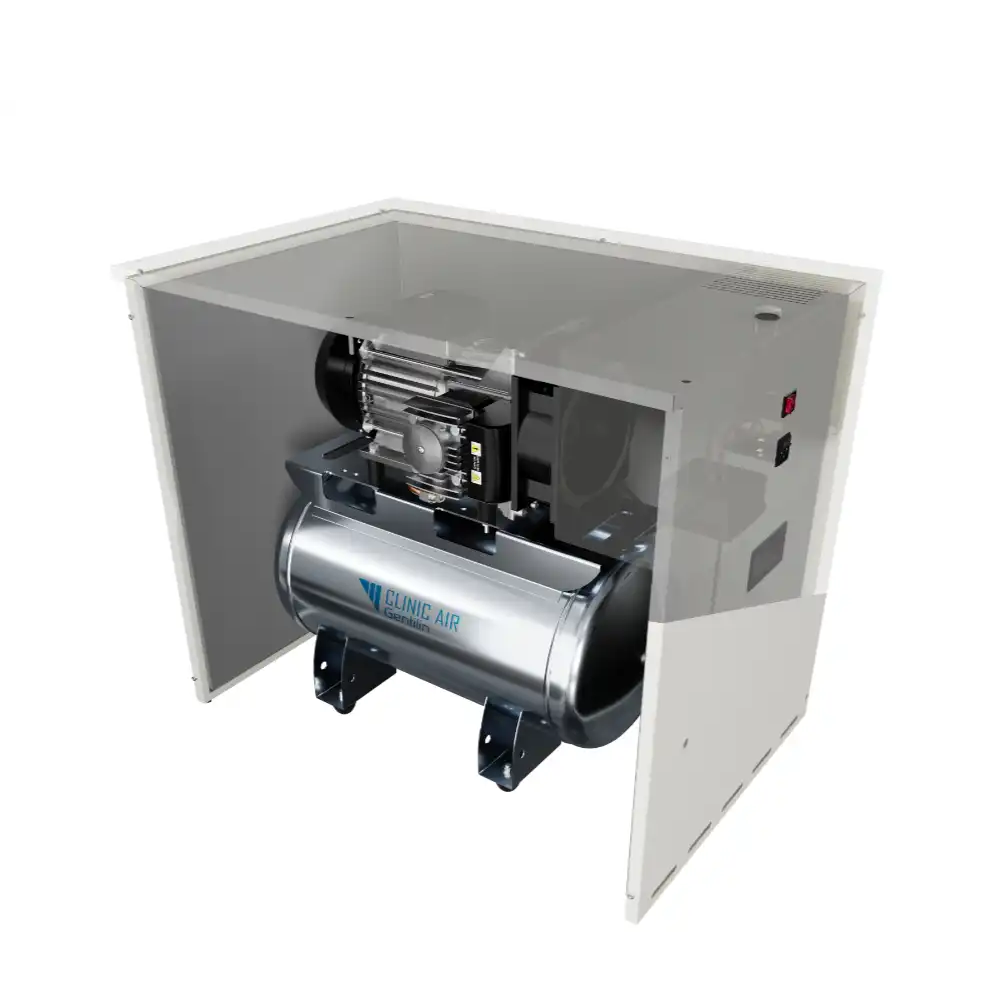

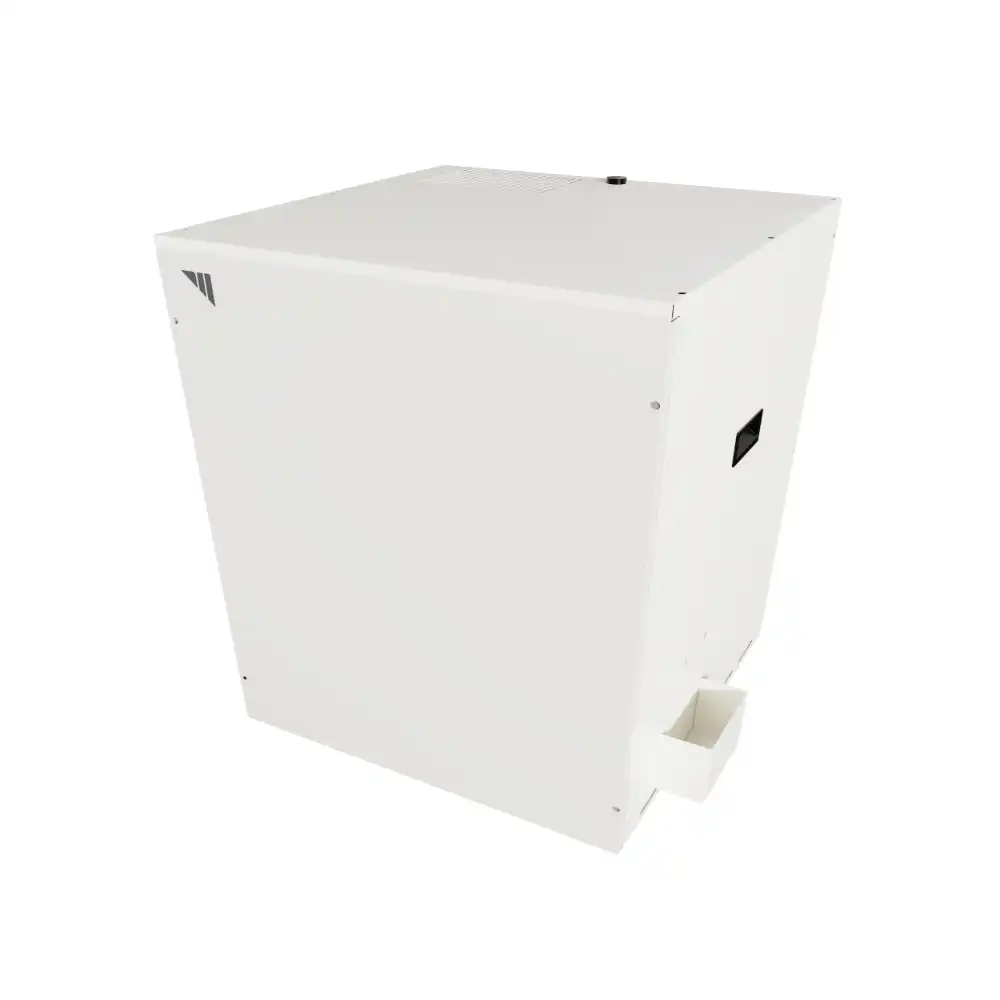

Technical Features• Optimized space-saving design for tight corners and small offices• Sturdy metal construction for extended use• Internal sound-dampening polyurethane walls to reduce noise• Thermostat-controlled extractor fans• Pre-assembled, easy to install and position in place• External ON/OFF ..

• Optimized space-saving design for tight corners and small offices• Sturdy metal construction for extended use• Internal sound-dampening polyurethane walls to reduce noise• Thermostat-controlled extractor fans• Pre-assembled, easy to install and position in place• External ON/OFF switch• Autonomous..

Technical Features: • Optimized space-saving design for tight corners and small offices• Sturdy metal construction for extended use• Internal sound-dampening polyurethane walls to reduce noise• Thermostat-controlled extractor fans• Pre-assembled, easy to install and position in place• External ..
