STANDART VERSION 230V / 400V ( CLINIC 6/90 )
Technical Data
• Condensate Treatment: -
• Particulate Treatment: -
• Air purity class (ISO 8573-1): X-X-0
• Voltage (V): 230,00 / 400,00
• Frequency (Hz): 50,00
• Nominal rating (kW): 2,80 / 3,00
• Nominal rating (HP): 3,75 / 4,00
• Rotation speed (rpm): 1.400,00
• Absorption (A): 12,00 / 6,20
• Number of cylinders: 4
• Air intake (L/min): 430,00 / 480,00
• Air Delivery (L/min @5 bar): 265,00 / 345,00
• Air Delivery (L/min @8 bar): 190,00 / 285,00
• Maximum pressure (bar): 10,00
• Noise level (3,00m @ 5,00 bar (dB(A))): 73,00
• Duty cycle; S1 100%
• Tank Coating: Acciaio Inox AISI 304
• Tank capacity (lt): 90,00
• First Maintenance (hours): 3000
• Hour Meter: Incluso
• Tank Automatic Drain kit: incluso
Product Dimensions 230V / 400V
• Dimensions (cm) – LxWxH: 98,5x49,7x72,2
• Weight (Kg): 78

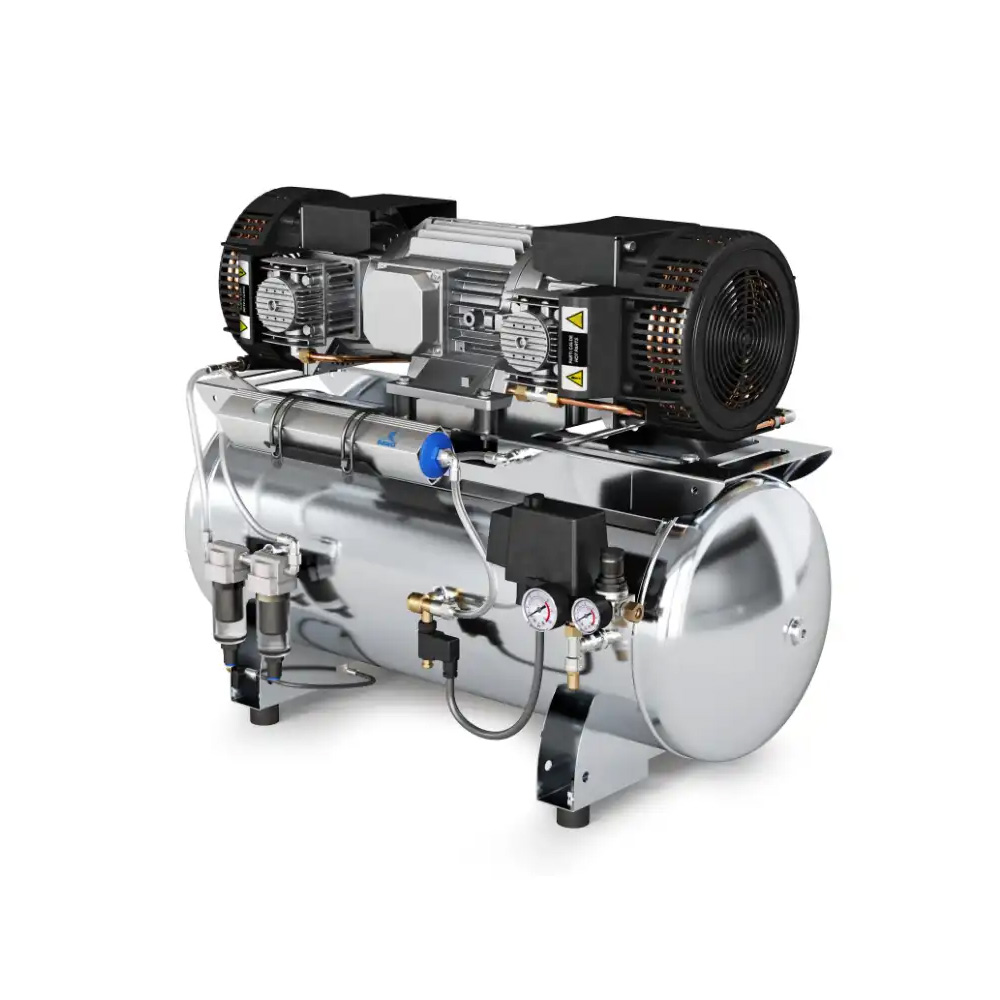

VERSION WITH MEMBRANE DRYER 230V / 400 V ( CLINIC DRY 6/90 H )
Technical Data
• Condensate Treatment: Membrane air dryer | Dew point -40°C
• Particulate Treatment: 0,3 µm
• Air purity class (ISO 8573-1): 3-3-0
• Voltage (V): 230,00 / 400,00
• Frequency (Hz): 50
• Nominal rating (kW): 2,80 /3,00
• Nominal rating (HP): 3,75 / 4,00
• Rotation speed (rpm): 1.400,00
• Absorption (A): 12,00 / 6,20
• Number of cylinders: 4
• Air intake (L/min): 430,00 / 480,00
• Air Delivery (L/min @5 bar): 205,00 / 270,00
• Air Delivery (L/min @8 bar): 145,00 / 200,00
• Maximum pressure (bar): 10,00
• Noise level (3,00m @ 5,00 bar (dB(A))): 73,00
• Duty cycle: S1 100%
• Tank Coating: Acciaio Inox AISI 304
• Tank capacity (lt): 90
• First Maintenance (hours): 3000
• Hour Meter: Incluso
• Tank Automatic Drain kit: Optional
Product Dimensions 230V / 400V
• Dimensions (cm) – LxWxH: 98,5x49,7x72,2
• Weight (Kg): 79

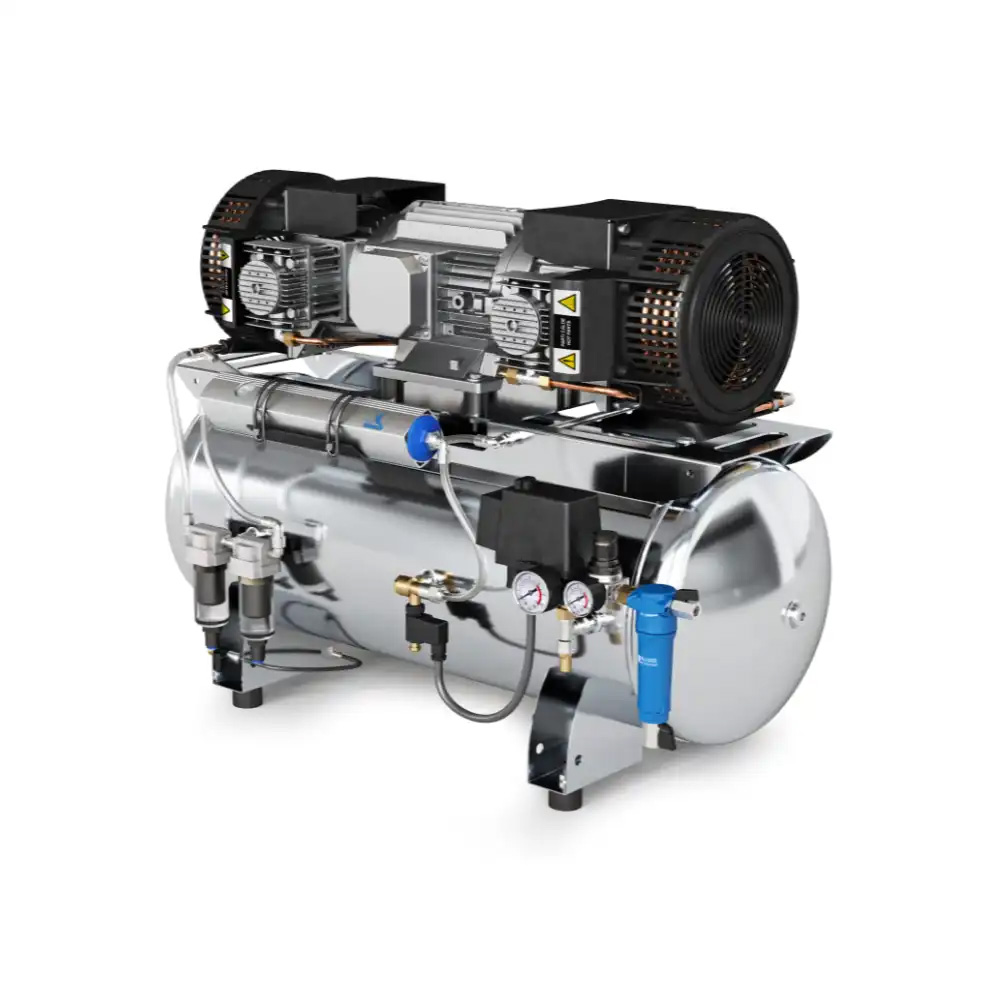

VERSION WITH MEMBRANE DRYER AND STERILIZING FILTER 230V / 400V ( CLINIC DRY 6/90 HS)
Technical Data
• Condensate Treatment: Membrane air dryer | Dew point -40°C
• Particulate Treatment: 0,01µm | Filtro antibatterico
• Air purity class (ISO 8573-1): 0-3-0
• Voltage (V): 230,00 / 400,00
• Frequency (Hz): 50,00
• Nominal rating (kW): 2,80 / 3,00
• Nominal rating (HP): 3,75 / 4,00
• Rotation speed (rpm): 1.400,00
• Absorption (A): 12,00 / 6,20
• Number of cylinders: 4
• Air intake (L/min): 430,00 / 480,00
• Air Delivery (L/min @5 bar): 205,00 / 270,00
• Air Delivery (L/min @8 bar): 145,00 / 200,00
• Maximum pressure (bar): 10,00
• Noise level (3,00m @ 5,00 bar (dB(A))): 73,00
• Duty cycle: S1 100%
• Tank Coating: Acciaio Inox AISI 304
• Tank capacity (lt): 90,00
• First Maintenance (hours): 3000
• Hour Meter: Incluso
• Tank Automatic Drain kit: Optional
Product Dimensions 230V / 400V
• Dimensions (cm) – LxWxH: 98,5x49,7x72,2
• Weight (Kg): 82
